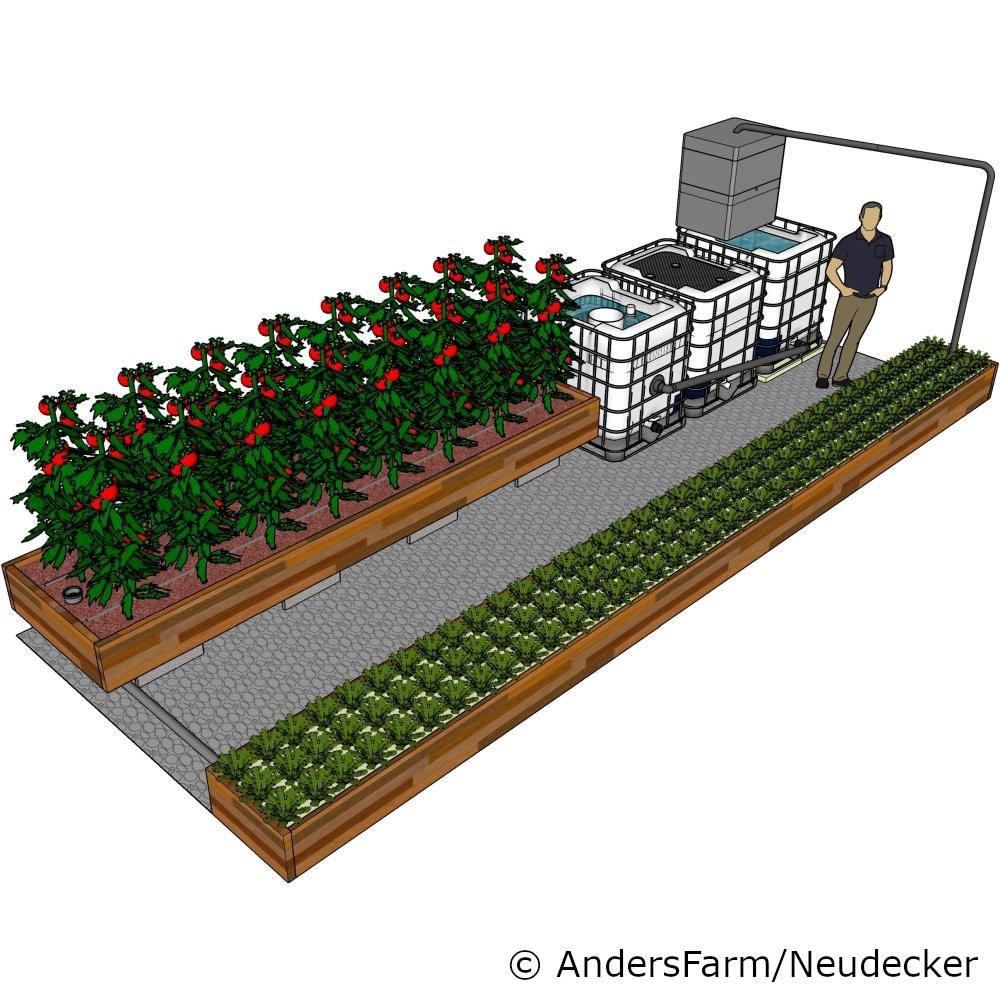

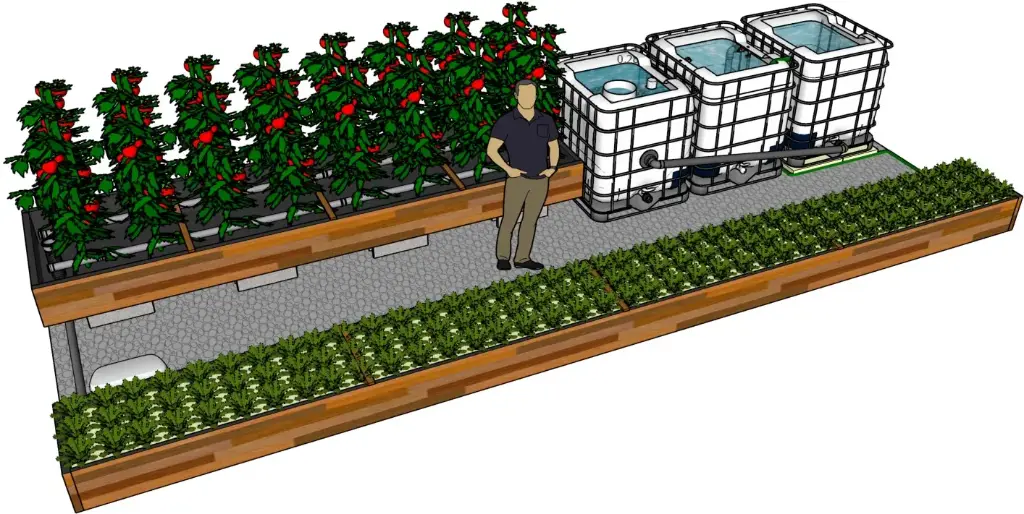

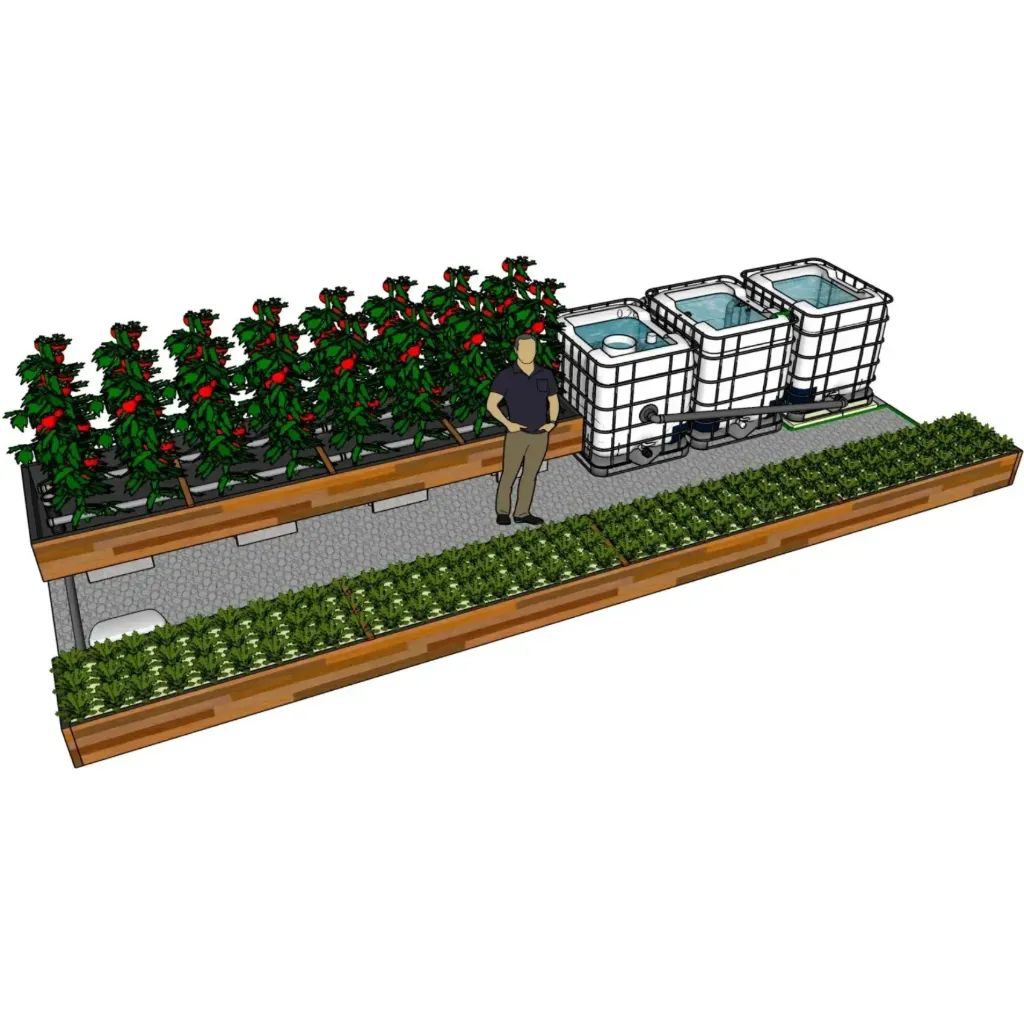

Construction Plan - 3 IBC-High-Performance System (EN & GE)
Unser Favorit.
Für alle, die problemlos in die Aquaponik einsteigen wollen und in Folge auch hohe Produktionsmengen auf kleiner Fläche produzieren möchten.
Aquakultur-Teil:
Mastbecken
Vorstreckbecken (Einhängbecken)
Feststoff-Filter (Radial Flow Filter mit konischem Boden und zusätzlichem Feinstoff-Filter)
Bio-Filter (innovativer Festbettfilter mit optimierter Anströmung)
Optionaler Rieselfilter
Dual Drain System
Luftheber betrieben
Einfach modular erweiterbar
Optionale automatische Wassernachfüllung
Hydrokultur-Teil:
Medienbeet (Wicking Bed mit optimiertem Zulauf)
Deep Water Culture (mit optimiertem Belüftungssystem)
Bei Ganzjahresbetrieb (Fischteil isoliert und beheizt) bis zu 750 kg Fisch pro Jahr möglich.
Bei reinem Sommerbetrieb bis zu 300 kg Fisch pro Jahr möglich.
ACHTUNG:
Der Kauf der Bauanleitung berechtigt zur Umsetzung der Anlage für eigene Zwecke, nicht jedoch zur Weitergabe der Unterlagen an Dritte. Jeder Plan ist signiert und kann dem Käufer eindeutig zugeordnet werden. Eine Veröffentlichung zieht schadenersatzrechtliche Folgen nach sich.
Detailed Description
Here, you’ll find answers to any questions you might have about the system.
A proven system
for achieving high output
The system has already been successfully implemented countless times using our construction plan. The design reflects extensive experience and includes many details that guarantee reliable operation even under higher stocking densities.
- relatively easy to build
- very reliable
- generously sized to ensure high water quality
Key Metrics
Dimensions Aquaculture:
320 x 125 x 120 cm (l x b x h)
Reccomendet Greenhouse (inkl Hydroculture): 500 x 300 cm (l x b) or bigger
Volume Fish-Tank: 1.000 liter
Yield Fish/Year: up to 720 kg *
* with african catfish and year round operation
Yield Fish/Summer Season: up to 240 kg *
* with african catfish and operation only over summer time
Energy Consumption: app. 60 watt / hour
Water Consumption: 300 - 650 liter/week *
* depending form stocking and feeding can also be much lower
Max. supported plant area: up to 45 m2 *
* net plant area (without walkways), when fully stocked fish tank
A bit of basic DIY experience and an enjoyment of hands-on work are recommended.
But with our highly detailed construction plan, everyone has been able to successfully set up the system.
What is included in the construction plan?
A fully illustrated step-by-step manual with clear, detailed assembly instructions.
In English and German Language.
Covers both the aquaculture and the connected hydroponics system, along with their integration. The hydroponics setup can be easily adapted to your available space using the guide.
A detailed parts list with precise specifications, plus sourcing information for many different countries.
How much time is required to set it up?
With two people, the setup takes around 3–4 days.
It can, however, also be assembled solo without help.
How much time is required to operate the system?
On average, you’ll need to clean the solid filter once a week (less often in the beginning, more often towards the end), which takes about 30 minutes.
Apart from that, feeding the fish twice a day only takes about a minute — and it’s usually quite fun.
How much time you spend caring for the vegetables depends on what you’re growing, but in summer 30 minutes per weeks at least should be planned for.
