Plug-and-play turnkey system for fish rearing. This unit is pre-configured for connection to a hydroponic system, allowing for full integration into an aquaponics setup.
Scope of Supply:

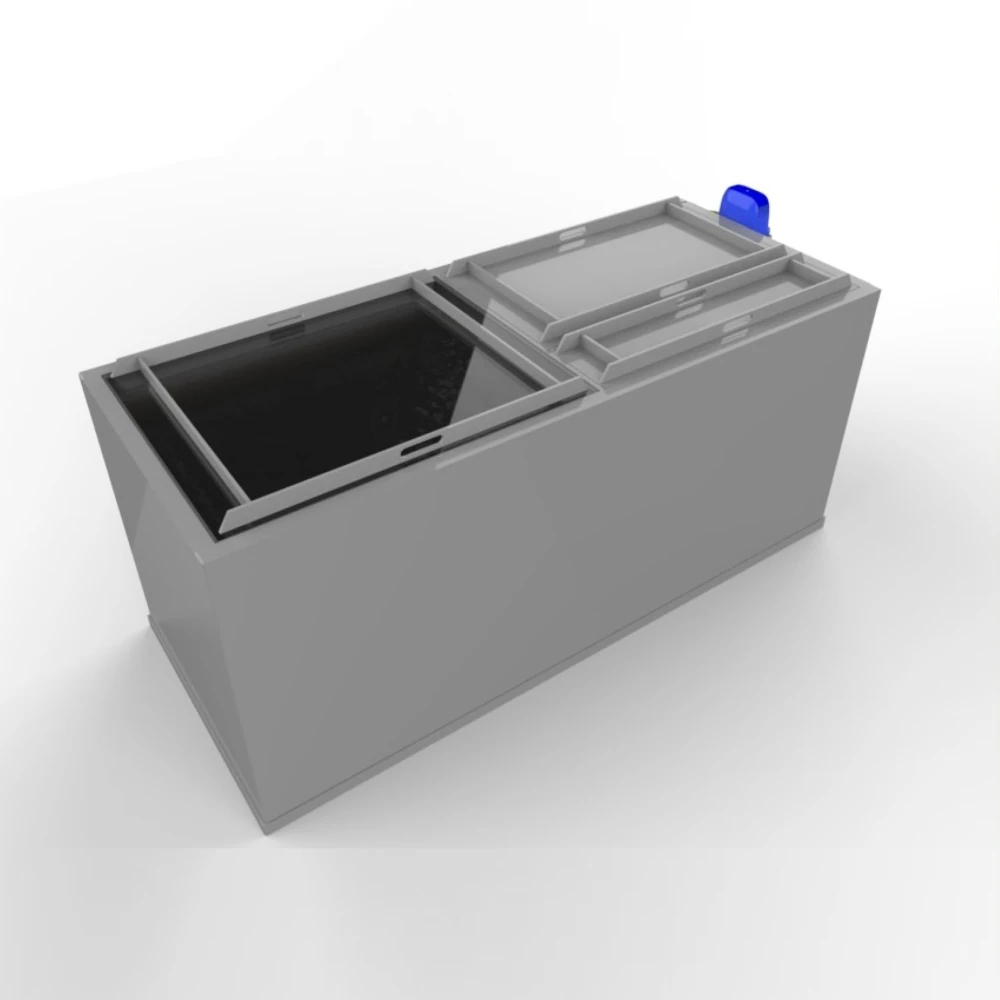

- Isolated Tank Module: Consisting of mast section, solids filter, and biofilter.
- Diaphragm Air Pumps: Engineered to provide optimal aeration and oxygen levels for African Catfish, Tilapia, Striped Bass, Carp, and other species with similar oxygen requirements.
- Filter media: All necessary biological and mechanical components included.
- Drain valve: For easy cleanting of the solids filter.
- Cover: Protective lid for temperature stability, splash protection and security.
Technical Data:
- Dimension GrowOut Tank: Water volume 910 Liter
- Dimensions (LxWxH): 239x101x105cm
Required Connections:
- 230V socket for pump operation
- DN50 piping for the outflow to the hydroponic unit
- DN50 piping for the inflow from the hydroponic unit
- DN50 piping for the main sludge-water outlet
